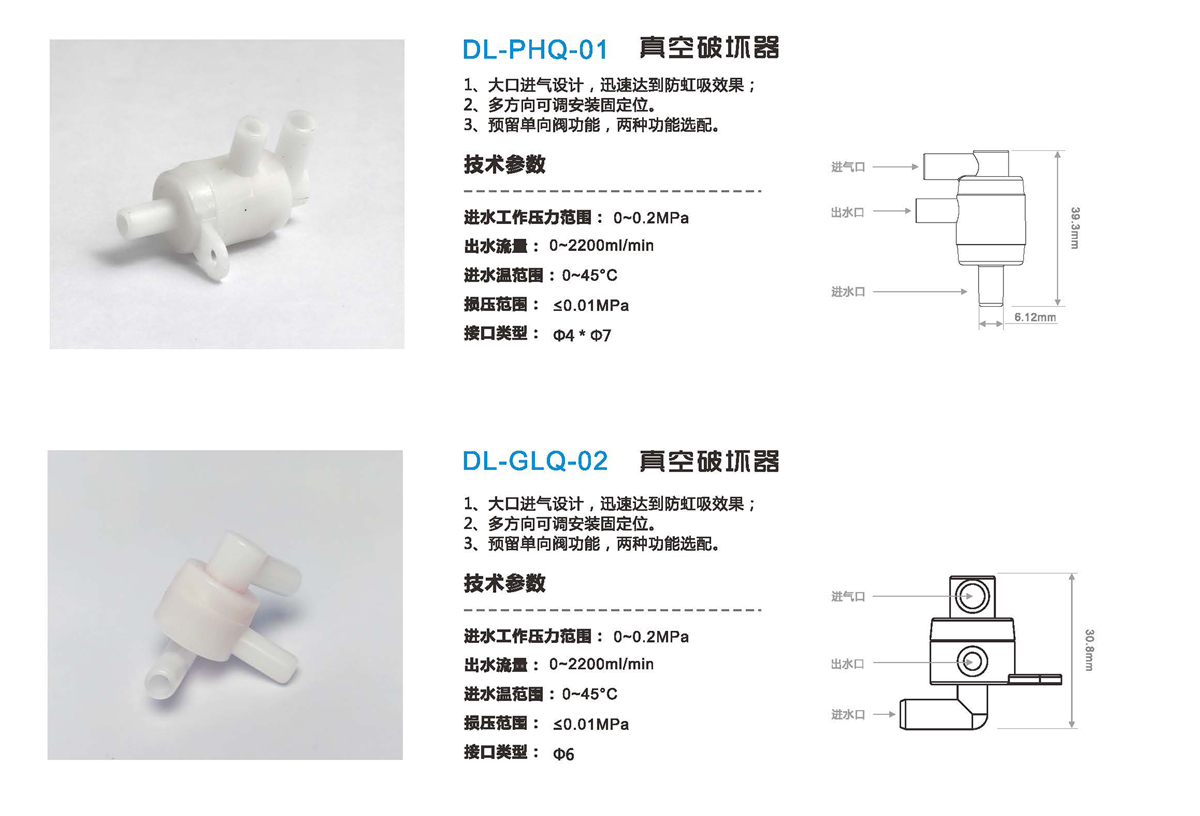

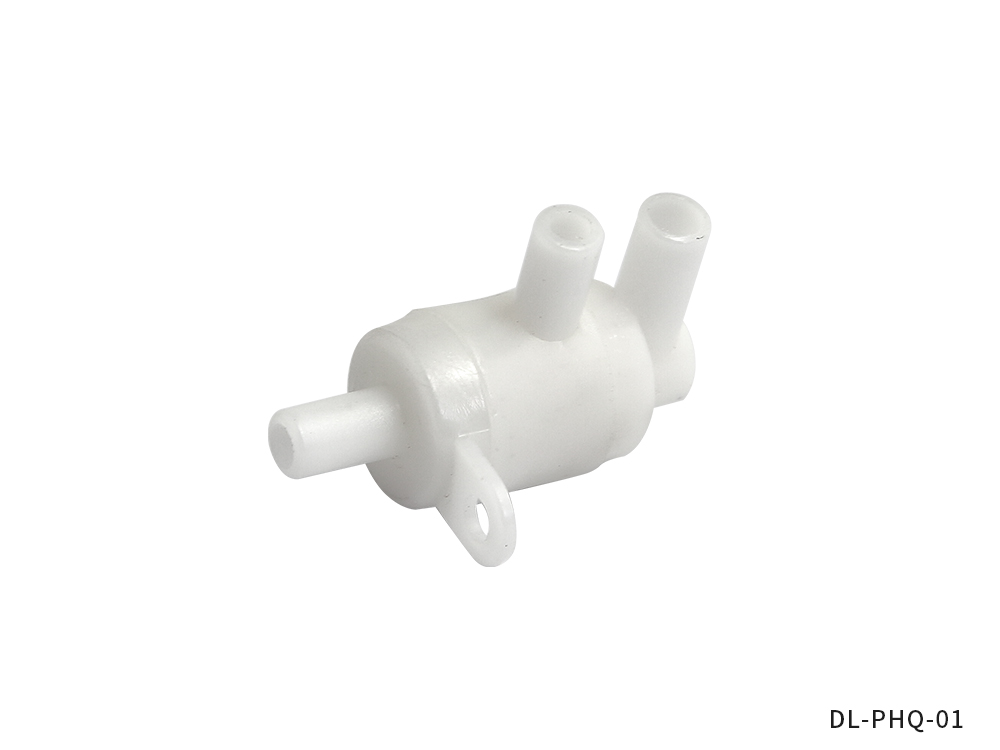

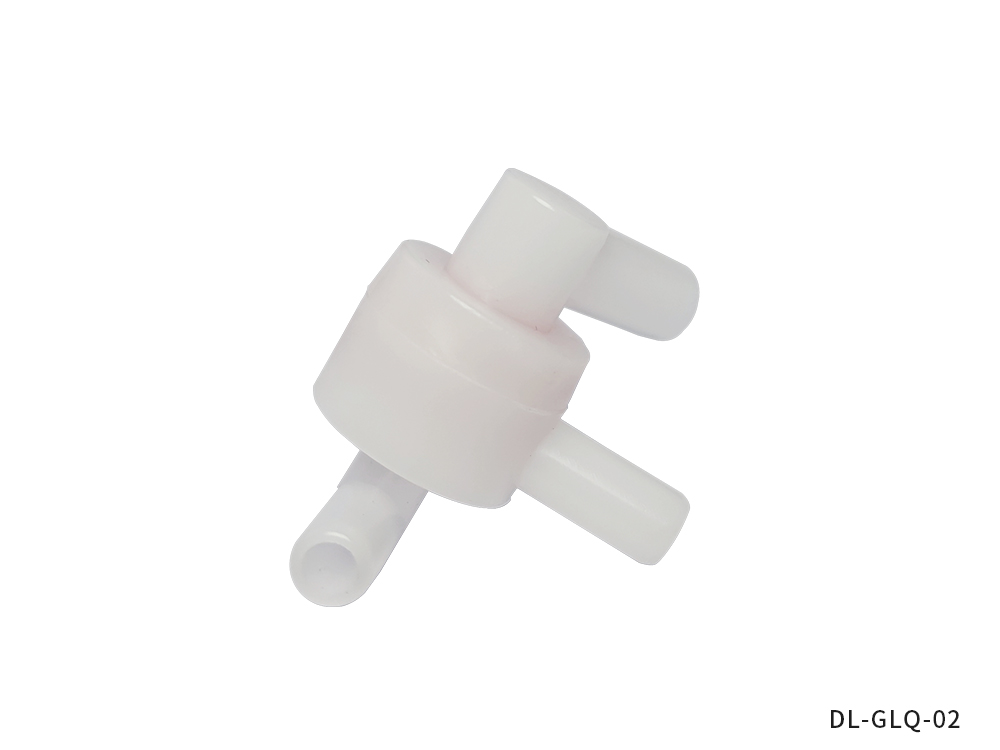

DL-PHQ / GLQ Vacuum breaker
Technical Parameters
Model: DL-PHQ / GLQ
Water inlet working pressure range：0~0.2Mpa
Discharge flow: Dynamic pressure 0~0.1Mpa 0~2200ml/m
Inlet temperature: 0~450C
Damage pressure radius: ≤0.01Mpa
Interface type: Φ3 * Φ6、Φ4 * Φ7
